S/V Velocity

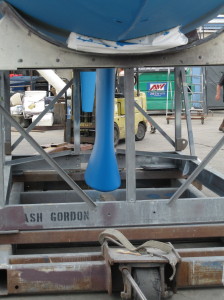

Profile of the keel of Velocity.
Velocity has a cored hull, a carbon-fiber mast, and a bit of a swelling at the bottom of her keel, all of which keeps the total weight down and low. But, in her heart, she's a cruising boat — the flared bow and full stern keeps her from surfing in all but the strongest of wind conditions.
Measurements
Here are the principle dimensions of Velocity:
| LOA | 42.0 ft |
| LWL | 35.1 ft |
| Beam | 12.2 ft |
| Draft | 6.6 ft |
| Empty displacement (measured) | 18,340 lbs |
| 1/2 Load Displacement (specs) | 19,700 lbs |
| Fuel | 62 gal |
| Fresh water | 100 gal |
| Ballast | 7000 lbs |
| 100% sail area | 790 sq ft |
| I | 50.50 ft |
| J | 14.70 ft |
| P | 46.50 ft |
| E | 18.0 ft |
| D / L | 203 |
| SA/D (100% jib) | 17.3 |
| SA/D (130% genoa) | 19.7 |
| Air draft | 56.7 ft |
Her PHRF rating is about 75 in the Puget Sound area, 72 in the Bay Area.
